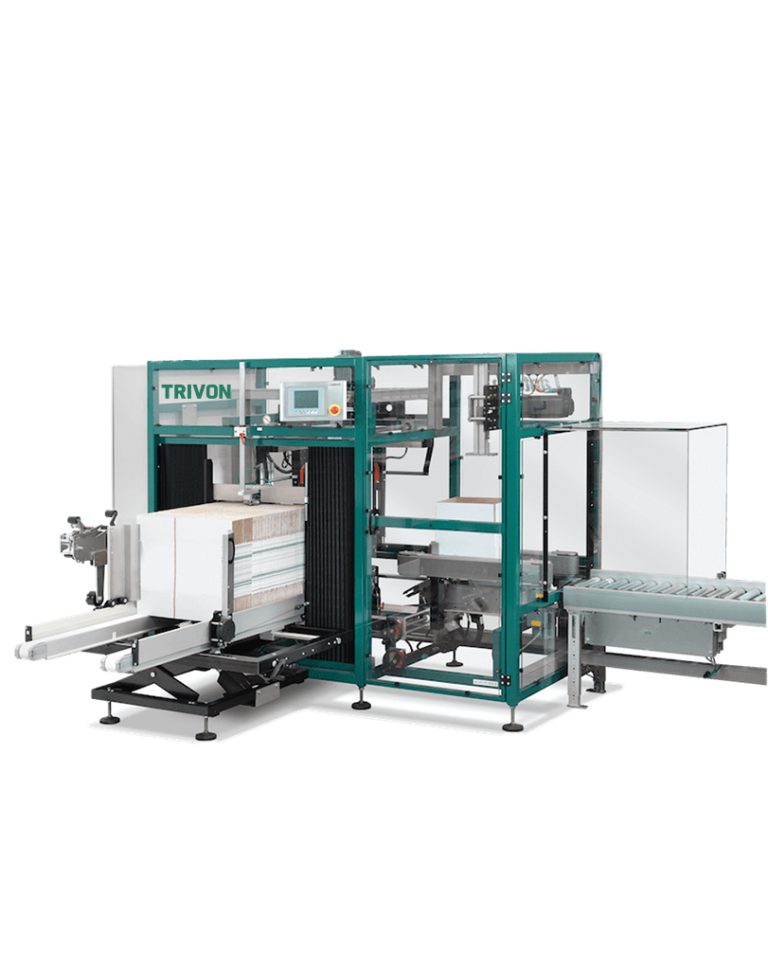

Case Erector Machine
Case Erector Machine
TCR CR/800
A compact and efficient machine for forming and bottom-sealing corrugated boxes, designed forreliable performance in packaging lines. Featuring pneumatic control, side belt drive, and a double vacuum suction mechanism for secure and precise carton pickup, it ensures stable box forming with minimal operator intervention.
General Fetures
– Minimum Carton Size: 320 mm x 200 mm x 150 mm
– Maximum Carton Size: 650 mm x 500 mm x 500 mm
– Working Speed: Up to 10 cartons per minute (depending on carton size)
– Carton Magazine Capacity: 100 cartons
– Tape Width: 75 mm (3 inch)
– Tape Roll Length: Up to 1200 meters
– Air Consumption: 500 NL/min
– Air Requirement: 6 bar
– Machine Weight: 500 kg
– Machine Dimensions: 2350 mm x 2100 mm x 1650 mm
