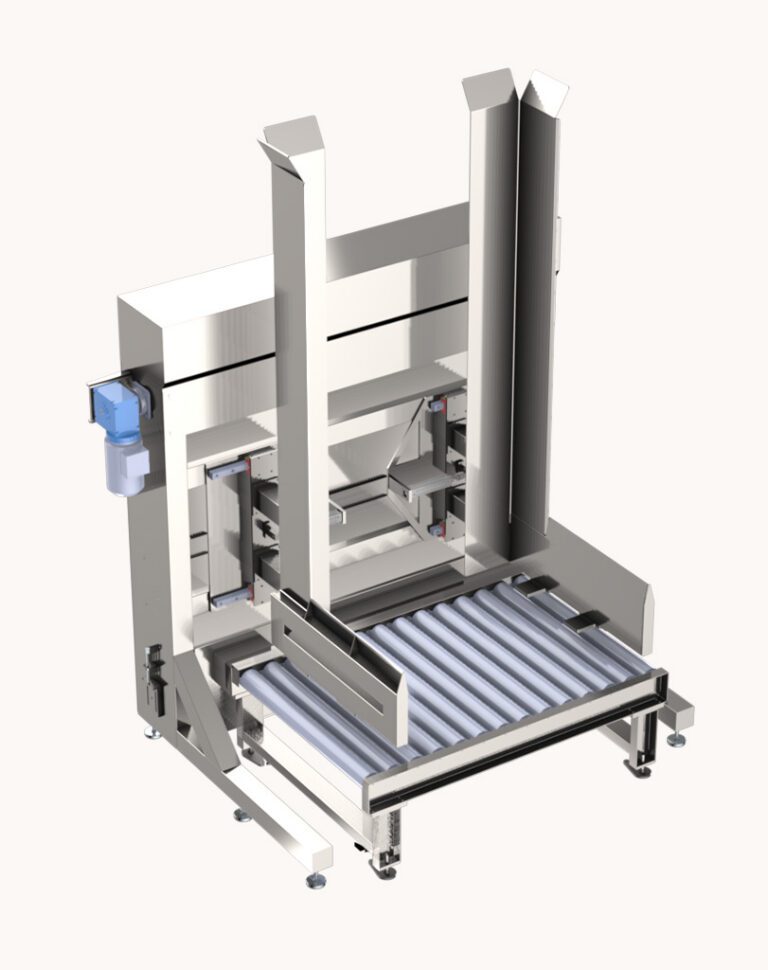

Inline Pallet Dispenser
Inline Pallet Dispenser
TBP TI600/800
A compact and automatic solution for feeding pallets into production or palletizinglines—ideal for continuous operation with minimal manual handling.
General Fetures
– Pallet Capacity: Up to 15 pallets
– Dispensing Speed: Up to 4 pallets/min
– Pallet Sizes: 800×1200, 1000×1200, 1200×1200 mm
– Power Supply: 220–380 V, 50/60 Hz
– Air Pressure: 6 bar (min)
– Structure: Heavy-duty steel with optional stainless steel finish
– Control System: PLC with touchscreen HMI
– Conveyor Integration: Compatible with roller or chain conveyors
– CE compliant with integrated safety features for operator protection
– Options: Custom sizes, freezer-ready design, AGV/AMR integration
